- Country
- Germany
- Manufacturer / Brand
- Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 25223
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 454 or 472/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

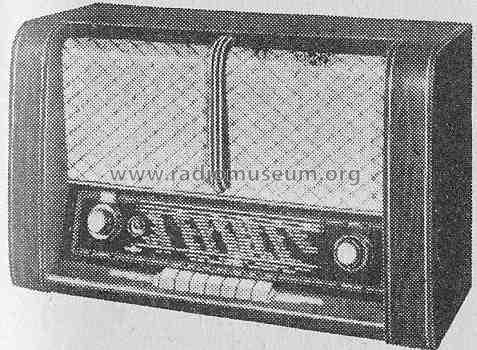

- Model: Imperial 604GW - Continental-Rundfunk GmbH
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 600 x 380 x 270 mm / 23.6 x 15 x 10.6 inch
- Notes
- Imperial 604GW ist ein Modell der Zwischensaison 1952/53.
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- Price in first year of sale
- 398.00 DM
- External source of data
- Rutishauser/EE
- Source of data
- HdB d.Rdf-& Ferns-GrH 1953/54 / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Funkgeschichte der GFGF (Band 7 "Continental-Rundfunk GmbH")
