Inconnu - Unknown 15
Unknown - CUSTOM BUILT: France (INCONNU)
- Country
- France
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: France (INCONNU)
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 137382

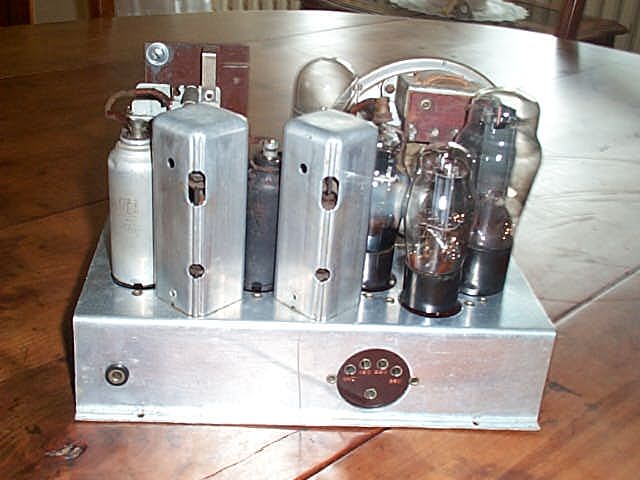

Avant restauration
Avant Restauration
Avant Restauration
Avant Restauration
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 130 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Inconnu - Unknown 15 - Unknown - CUSTOM BUILT: France
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 290 x 220 x 170 mm / 11.4 x 8.7 x 6.7 inch
- Notes
- La particularité de ce récepteur est d' être équipé d'un tube RTC1 Visseaux (Current Regulator, Iron in hydrogen)
- Net weight (2.2 lb = 1 kg)
- 3.8 kg / 8 lb 5.9 oz (8.37 lb)
- Author
- Model page created by Laurent Farnieras. See "Data change" for further contributors.
- Other Models
-
Here you find 269 models, 253 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Unknown - CUSTOM BUILT: France (INCONNU)
Collections
The model Inconnu - Unknown 15 is part of the collections of the following members.
Forum contributions about this model: Unknown - CUSTOM: Inconnu - Unknown 15
Threads: 1 | Posts: 1
Je viens de faire l' acquisition d' un recepteur tous courants equipé de ce regulateur de la marque Visseaux ansi que des tubes suivants:
- 6E8MG, 6K7, 6Q7, 25L6G, 25Z6G
Pouvez vous m'aider a identifier le fabricant et le modèle de ce poste tous courant. Vous trouverez ci-joint les photos de ce recepteur.
Laurent Farnieras
Attachments
Laurent Farnieras, 08.Jul.07
