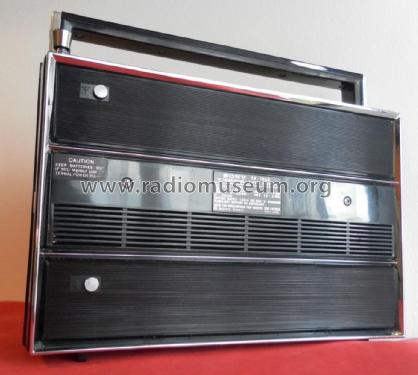

Sony TR-1000 Mozambique
INDATEC - Industrias de Aplicaçoes Tecnico-Domesticas Lda.; Machava
- Country
- Mozambique
- Manufacturer / Brand
- INDATEC - Industrias de Aplicaçoes Tecnico-Domesticas Lda.; Machava
- Year
- 1970 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 308202
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Sony TR-1000 [Mozambique] - INDATEC - Industrias de Aplica
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 264 x 218 x 103 mm / 10.4 x 8.6 x 4.1 inch
- Notes
-
Sony TR-1000 made in Mozambique by Indatec under SONY license.
Wave bands:
MW: 530 - 1600 kHz
SW1: 1.7 - 4 MHz
SW2: 4 - 9.8 MHz
SW3: 9.8 - 22 MHz
- Author
- Model page created by Jose Mesquita. See "Data change" for further contributors.
