• Country
• Austria

• Manufacturer / Brand
• Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9184

• • Brand: Elektrot.Fabrik Ludwig Neumann

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF124 AF136 AF137 AF138 BC158 BC148 AC178 AC179 AC117

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 127; 220 / 2 × 4,5 or 6 × 1,5 V Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

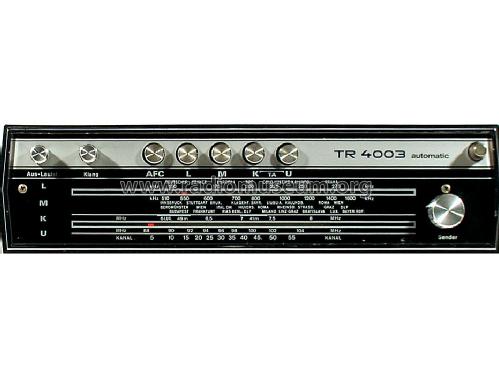

• Model: TR 4003 automatic/Netz 5214 01 67 - Ingelen, Elektrotechnische

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 305 x 165 x 80 mm / 12 x 6.5 x 3.1 inch

• Notes
• Ovallautsprecher 10,5 x 15,5 cm.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 1,790.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 448 models, 398 with images and 322 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
