• Country
• Austria

• Manufacturer / Brand
• Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8920

• • Brand: Elektrot.Fabrik Ludwig Neumann

• Number of Tubes
• 3

• Valves / Tubes

• Main principle
• TRF with regeneration; 2 AF stage(s); something special ? Please give information (notes)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

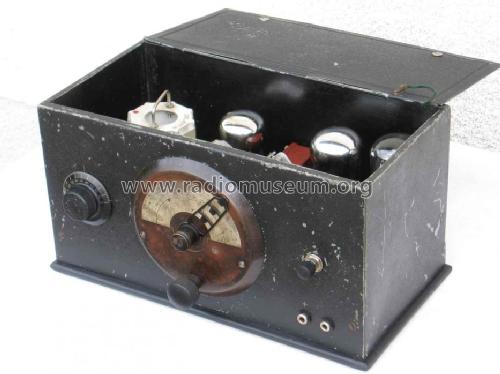

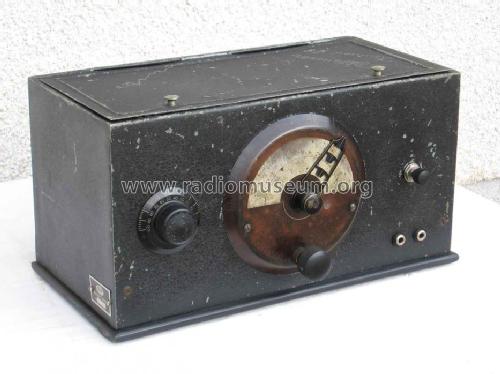

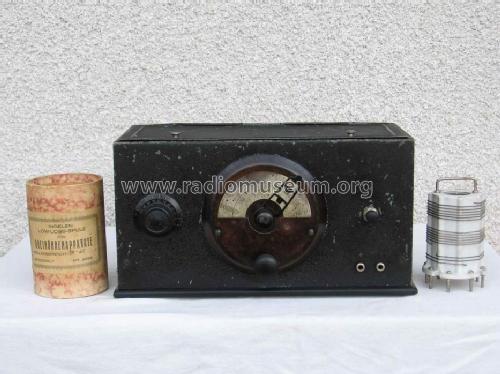

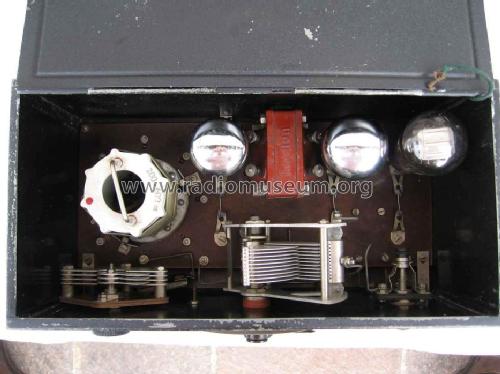

• Model: 3 Röhren Universalempfänger 8069 - Ingelen, Elektrotechnische

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 300 x 150 x 160 mm / 11.8 x 5.9 x 6.3 inch

• Notes
• als Baukasten Preis: 145 ATS. Die Preise ohne Röhren! Auch als Fertiggerät erhältlich.

• Price in first year of sale
• 180.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 448 models, 398 with images and 322 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
