- Country
- Austria
- Manufacturer / Brand
- Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 350695
-
- Brand: Elektrot.Fabrik Ludwig Neumann

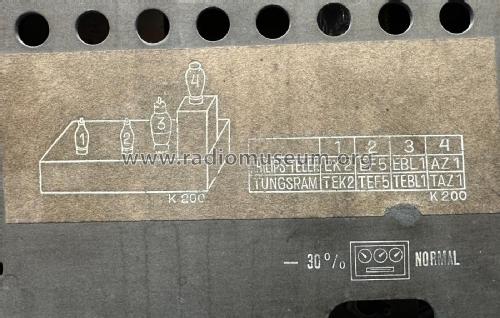

- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 200; 220; 240 Volt

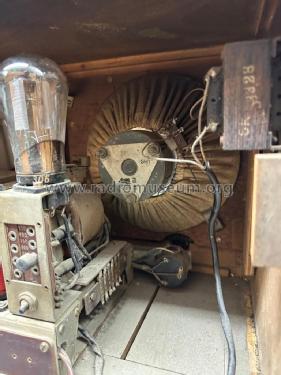

- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Columbus 338W - Ingelen, Elektrotechnische
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 335 x 260 mm / 17.7 x 13.2 x 10.2 inch
- Notes
-
Ingelen Columbus 338W hat vor der Schallwand 3 Holzstreben mit eingelegten Zierstreifen.
Siehe auch Ingelen U-Super 338W mit 4 Metallstreben und das Exportmodell 338W mit 3 schlichten Holzstreben.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
