• Country
• Austria

• Manufacturer / Brand
• Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9116

• • Brand: Elektrot.Fabrik Ludwig Neumann

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH42 UAF42 UAF42 UL41 UM4 UY41

• Main principle
• Superheterodyne (common); ZF/IF 451 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

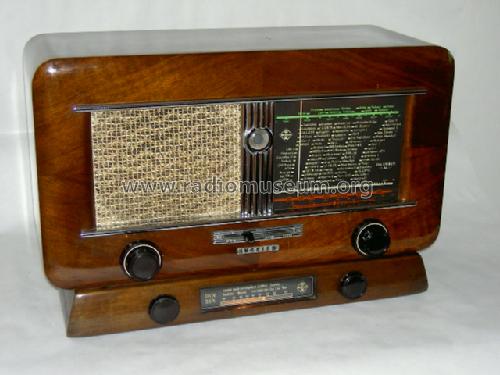

• Model: Columbus 53GW - Ingelen, Elektrotechnische

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 250 x 185 mm / 17.3 x 9.8 x 7.3 inch

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Price in first year of sale
• 1,680.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Unterlagen E.Erb
