• Country
• Austria

• Manufacturer / Brand
• Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9051

• • Brand: Elektrot.Fabrik Ludwig Neumann

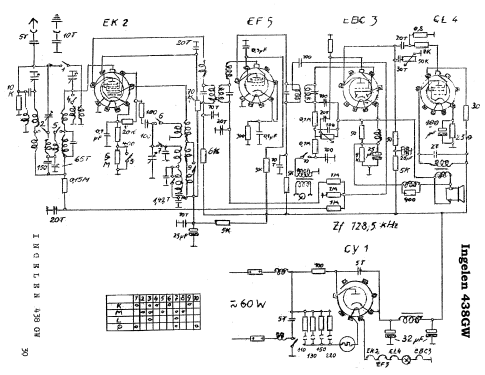

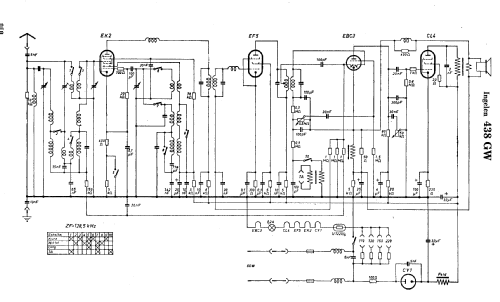

Click on the schematic thumbnail to request the schematic as a free document.

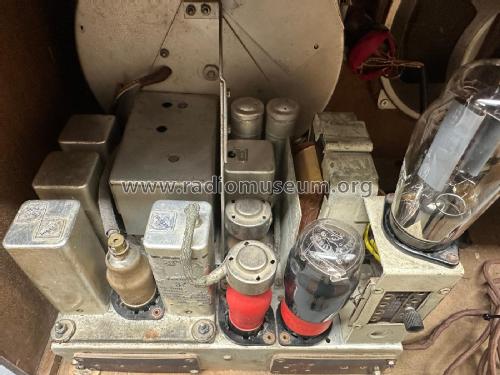

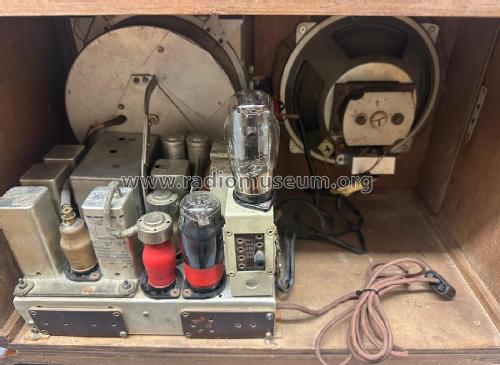

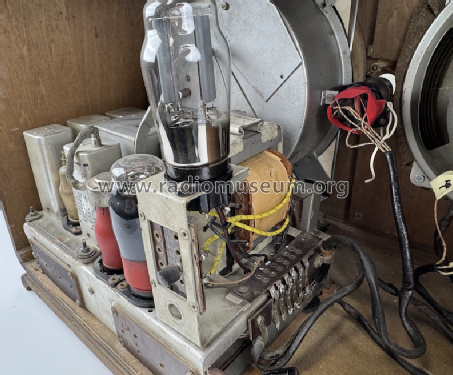

• Number of Tubes
• 5

• Valves / Tubes
• EK2 EF5 EBC3 CL4 CY1 C12 U1220/6

• Main principle
• Superheterodyne (common); ZF/IF 128,5 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

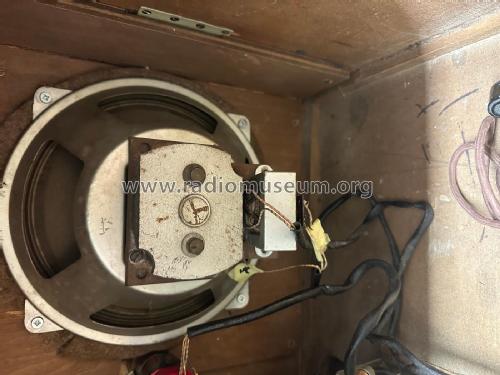

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

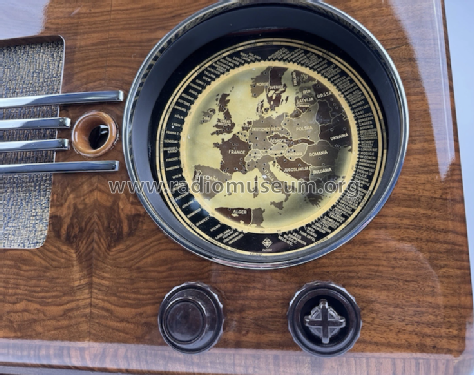

• Model: Geographic U - Super 438GW - Ingelen, Elektrotechnische

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 555 x 378 x 300 mm / 21.9 x 14.9 x 11.8 inch

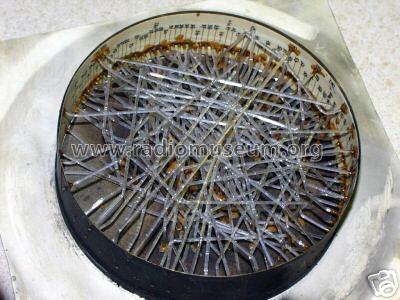

• Notes
• Geographic

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

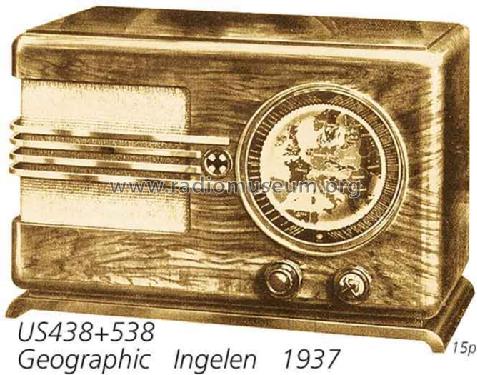

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
