• Year
  • 1936/1937
  • Category

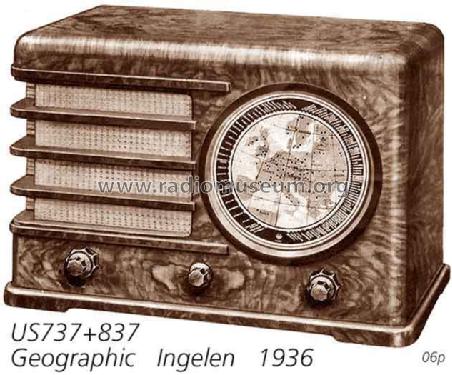

  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 9037
    • Brand: Elektrot.Fabrik Ludwig Neumann

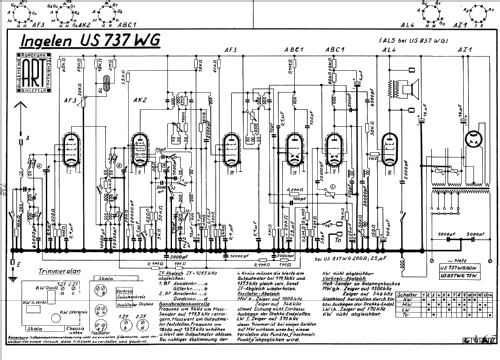

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 128 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Geographic US737WG - Ingelen, Elektrotechnische
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Export Schweiz (Sch=Thali)
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
