• Country
• Austria

• Manufacturer / Brand
• Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9139

• • Brand: Elektrot.Fabrik Ludwig Neumann

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• DK96 DF96

• Number of Transistors
• 5

• Semiconductors
• OC71 OC71 OC72 OC72 OC76 or. OC72 OA79 OA85 or. OA81

• Main principle
• Superheterodyne (common); ZF/IF 459 kHz; 4 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 2x4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

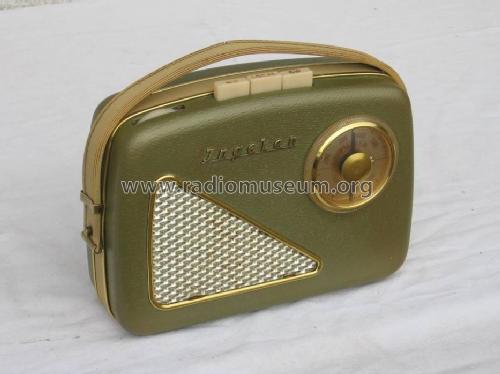

• Model: portable TR200a - Ingelen, Elektrotechnische

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 150 x 67 mm / 8.7 x 5.9 x 2.6 inch

• Notes

• KW - Bereich von 17,5m - 35,5m.

  Reflexstufe: ZF/NF (DF96)

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Price in first year of sale
• 1,460.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Unterlagen E.Erb

• Mentioned in
• Museums Bote, Österr. (Heft 127/2005, S.5 ff, Gerätebeschreibung u. Varianten)
