- Country
- Austria
- Manufacturer / Brand
- Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
- Year
- 1939–1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 9082
-
- Brand: Elektrot.Fabrik Ludwig Neumann
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

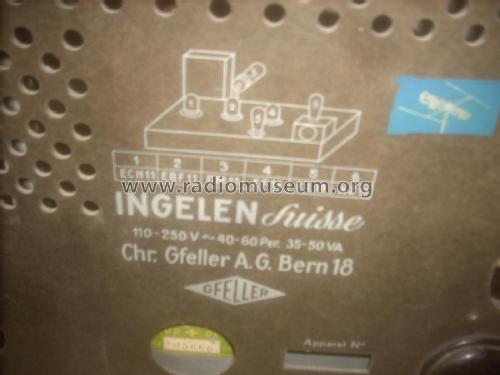

- Model: Suisse 540W - Ingelen, Elektrotechnische
- Dimensions (WHD)
- 530 x 335 x 260 mm / 20.9 x 13.2 x 10.2 inch
- Notes
- Fabr. Gfeller, Bern!
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
