• Country
• Austria

• Manufacturer / Brand
• Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

• Year
• 1939/1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 223996

• • Brand: Elektrot.Fabrik Ludwig Neumann

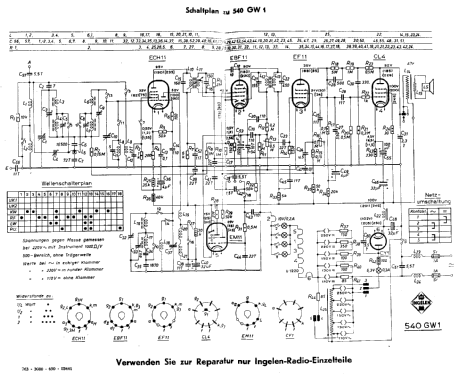

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH11 EBF11 EF11 CL4 EM11 CY1 U1220

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super 540GW1 mit Autotransformator - Ingelen, Elektrotechnische

• Shape
• Tablemodel, low profile (big size).

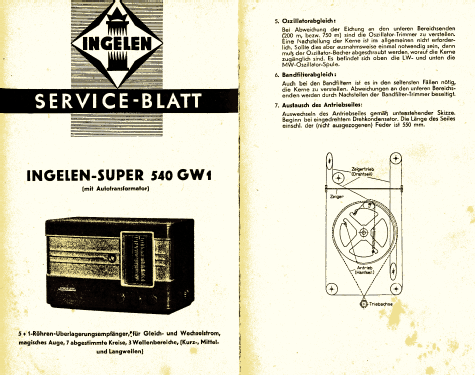

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Rudolf Müller. See "Data change" for further contributors.
