• Country
• Austria

• Manufacturer / Brand
• Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

• Year
• 1974/1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62870

• • Brand: Elektrot.Fabrik Ludwig Neumann

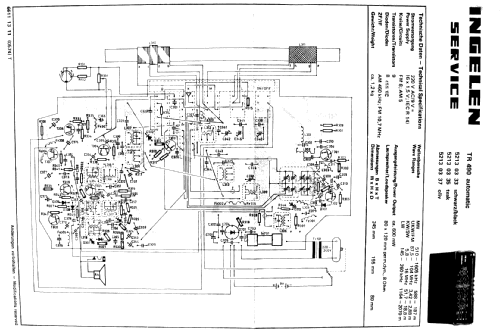

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• CS9016 2SC785 2SC381 2SC381 2SC381 CS1312 CS1909 CS1910 CS1914

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220; 240 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TR-490 automatic - Ingelen, Elektrotechnische

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 245 x 155 x 80 mm / 9.6 x 6.1 x 3.1 inch

• Notes
• 5213 03 33 = schwarz
  5213 03 35 = teak
  5213 03 37 = oliv

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Museums Bote, Österr. (Heft 78/1997, S.1, erwähnt in Firmengeschichte)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
