• Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 9008
    • Brand: Elektrot.Fabrik Ludwig Neumann

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 128,5 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Visual Tuning Indicator pre Eye
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 200; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Der Jubiläumssuper US25 W - Ingelen, Elektrotechnische
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes

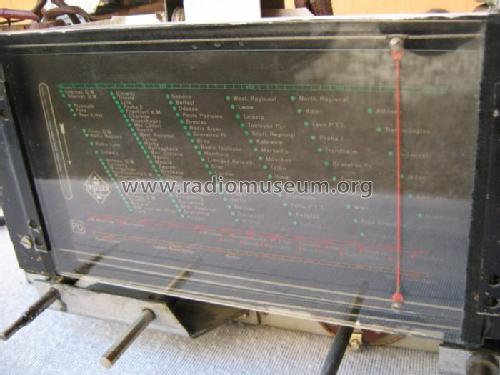

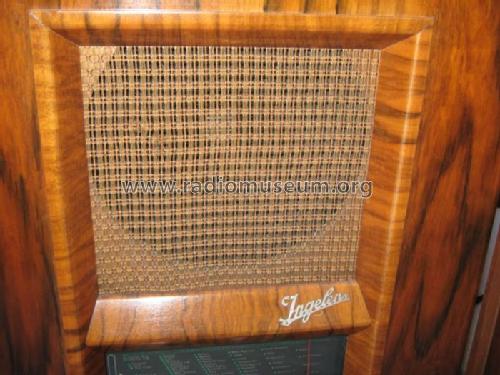

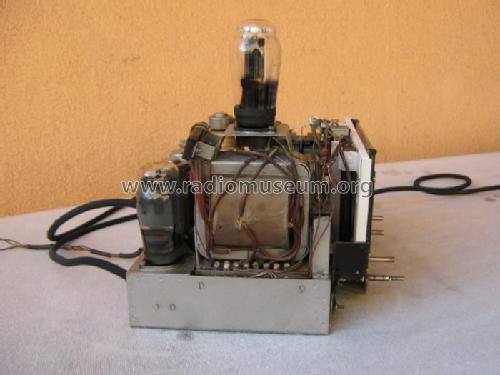

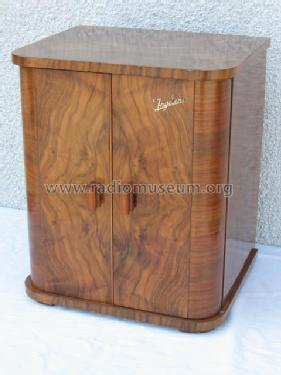

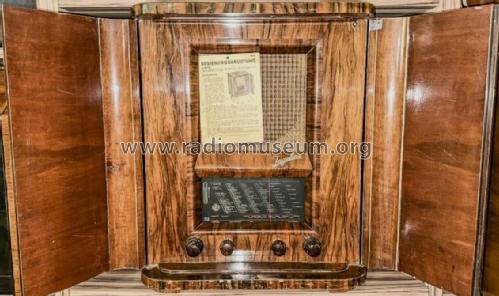

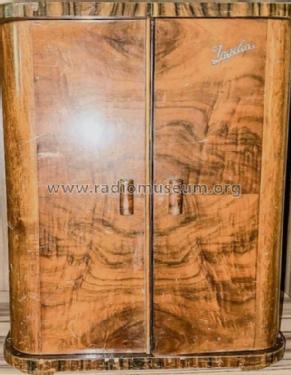

  • Holzgehäuse in Form einer kleinen Kommode mit 2 Türen.
    Glimmstabanzeiger zur Abstimmanzeige.

  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference

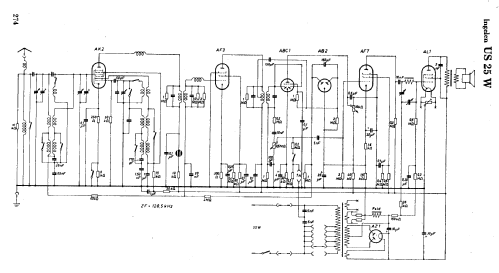

  • Die «Thali Schemasammlung» führt das Modell.
