• Country
• Austria

• Manufacturer / Brand
• Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

• Year
• 1965

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 84143

• • Brand: Elektrot.Fabrik Ludwig Neumann

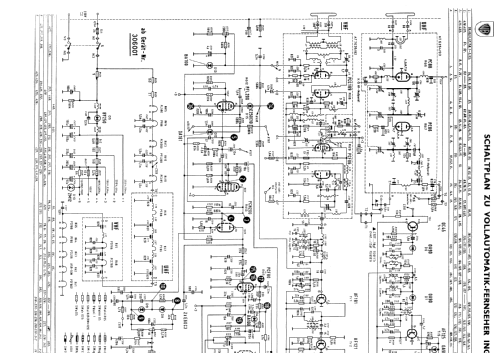

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• PCC189 PCF86 PC88 PC86 PFL200 PCL86 PCH200 PCF80 PF86 PCL85 PCF802 PL500 PY88 DY87 A59-16W

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Weltblick 610TR [Nr. > 306.001] - Ingelen, Elektrotechnische

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 550 x 380 mm / 23.6 x 21.7 x 15 inch

• Notes
• Empfangsbereich VHF + UHF

• Net weight (2.2 lb = 1 kg)
• 34 kg / 74 lb 14.2 oz (74.89 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
