• Country
• France

• Manufacturer / Brand
• Inovat - voir aussi Émyphone; Boulogne-Billancourt, Paris

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 304066

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4.5 & 80 & ? Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (4 magnet poles).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super Inovavox 3406 - Inovat - voir aussi Émyphone;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 470 x 950 x 260 mm / 18.5 x 37.4 x 10.2 inch

• Net weight (2.2 lb = 1 kg)
• 11.8 kg / 25 lb 15.9 oz (25.991 lb)

• Price in first year of sale
• 1,190.00 FRF

• Mentioned in

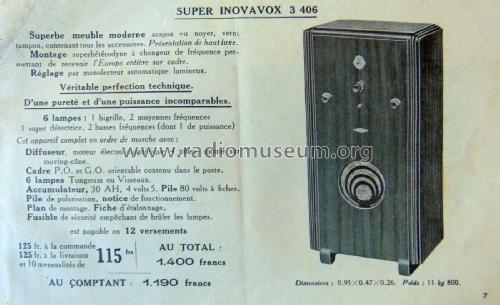

• Inovat Cat. General 1933 p.7

• Author
• Model page created by Manfred Rathgeb. See "Data change" for further contributors.

• Other Models

• Here you find 34 models, 30 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Inovat - voir aussi Émyphone; Boulogne-Billancourt, Paris
