• Country
• France

• Manufacturer / Brand
• Intermonde Radio-Tour, Damiani et Cie; Paris

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 273687

• Number of Tubes
• 6

• Valves / Tubes
• 6E8MG 6M7MG 6Q7GT 6V6G 6AF7 5Y3GB

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

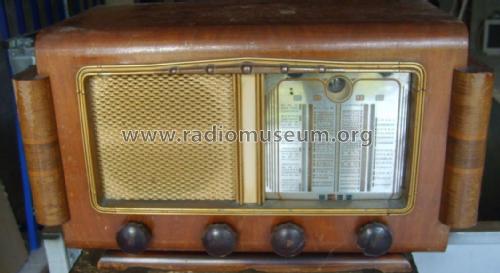

• Model: MCA6 - Intermonde Radio-Tour, Damiani

• Shape
• Tablemodel, low profile (big size).

• Author
• Model page created by Jean Laurent. See "Data change" for further contributors.

• Other Models

• Here you find 6 models, 5 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Intermonde Radio-Tour, Damiani et Cie; Paris
