• Country
• Austria

• Manufacturer / Brand
• ITT Schaub-Lorenz Wien

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5927

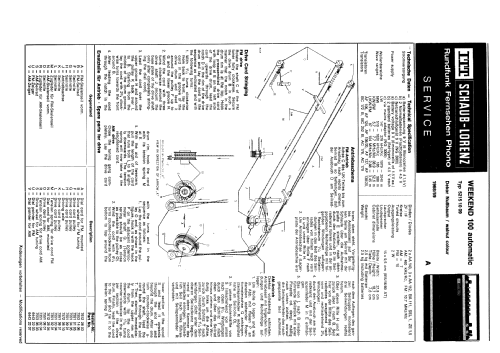

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6x1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: WEEKEND 100 automatic 52151009 - ITT Schaub-Lorenz Wien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 278 x 187 x 76 mm / 10.9 x 7.4 x 3 inch

• Notes
• 9 Tr.: AF: 106, 124, 136, 137, 138, BC252B+172B, AC178+179; 7 Ta. Dieses Gerät wurde bei ITT Schaub-Lorenz Wien (früher Ingelen) für die EFTA-Freihandelszone hergestellt. Sichtbares Zeichen ist das "Made in Austria" auf der Skala unter dem Lautstärkeregler.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Source of data
• Handbuch VDRG 1969/1970 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 30 models, 28 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from ITT Schaub-Lorenz Wien
