• Country
• Austria

• Manufacturer / Brand
• ITT Schaub-Lorenz Wien

• Year
• 1971–1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28926

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 4 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 127; 220 / 6×1,5; 2×4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

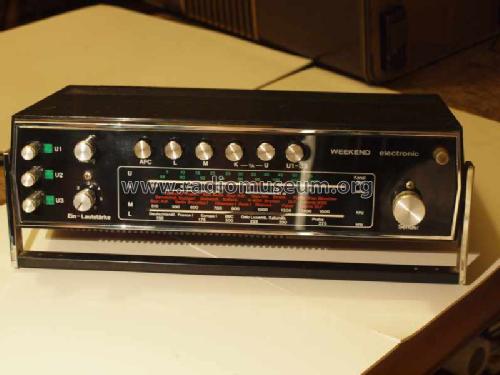

• Model: Weekend electronic 102  52151007 - ITT Schaub-Lorenz Wien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 305 x 165 x 80 mm / 12 x 6.5 x 3.1 inch

• Notes
• Österreichische Variante des auch in Deutschland hergestellten Weekend electronic 102 52151025
  3 UKW Stationstasten. Wahlweise 6 Babyzellen oder 2 x 4,5 Flachbatterien. Netzbetrieb 127/220 V über eingebautes Netzteil.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 30 models, 28 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from ITT Schaub-Lorenz Wien
