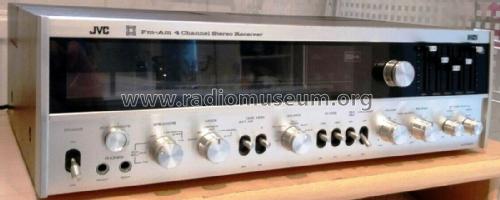

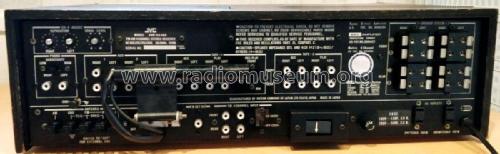

Fm-Am 4 Channel Stereo Receiver 4VR-5446X

JVC - Victor Company of Japan, Ltd.; Tokyo

Dati
Forum
Immagini
Collezioni

  • Anno
  • 1973 ?
  • Categoria
  • Radio (o sintonizzatore del dopoguerra WW2)
  • Radiomuseum.org ID
  • 333230

 Specifiche tecniche

  • Numero di transistor
  • A semiconduttori.
  • Semiconduttori
  • Principio generale
  • ZF/IF 455/10700 kHz
  • Gamme d'onda
  • Onde medie (OM) e MF (FM).
  • Particolarità
  • Hi-Fi equipment
  • Tensioni di funzionamento
  • Alimentazione a corrente alternata (CA) / 100; 120; 220; 240 Volt
  • Altoparlante
  • - Questo apparecchio richiede altoparlante/i esterno/i.
  • Potenza d'uscita
  • 110 W (indistorta)
  • Materiali
  • Mobile in legno
  • Radiomuseum.org
  • Modello: Fm-Am 4 Channel Stereo Receiver 4VR-5446X - JVC - Victor Company of Japan,
  • Forma
  • Apparecchio per ripiani a scaffale (come i componibili HiFi).
  • Dimensioni (LxAxP)
  • 20 x 6.375 x 15.375 inch / 508 x 162 x 391 mm
  • Annotazioni

  • An AC mains receiver with an AM/FM stereo tuner and a quadrophonic amplifier with output power of 4 x 21 watts RMS or 2 x 55 watts RMS into 8 ohms. With built-in CD-4 demodulator for 4 channel phono cartridge and tape and with a Det Out connection for an FM 4 channel broadcast demodulator and connections for FM 4 channel input. Optional JVC 5911 Remote Balance Control (joystick).

    Specification
    FM Tuner Section
    Tuning range  88 - 108MHz
    Usable sensitivity 2.0µV (IHF)
    THD Mono 0.5%, Stereo 0.8%
    S/N Ratio 65dB
    Selectivity 65dB
    AM Tuner Section
    Tuning range 520 - 1605kHz
    Usable sensitivity 30µV, 200µV/m
    Selectivity 30dB
    Audio Section
    RMS power all channels driven
    20Hz-20kHz  at 8Ω / 4Ω    		 21W per Channel / 23W per Channel
    Bridge Tied Load at 8Ω 55W x 2
    Total dynamic power at 8Ω  /  4Ω 172W / 200W
    IHF power bandwidth 10Hz - 30kHz
    Total Harmonic Distortion 0.5%
    IM distortion 0.8%
    Frequency response 10Hz - 30kHz ±1dB
    Load impedance (4-channel) 4 - 16Ω
    Damping factor 30 at 8Ω
    Input Sensitivity / Impedance/ S/N ratio
     for rated power
    Phono (low) 3mV / 100kΩ / 70dB
    Phono (high) 1.5mV / 100kΩ / 65dB
    Aux-1, Aux-2 200mV / 50Ω / 75dB
    Tape Mon-1, Mon-2 200mV / 50Ω / 75dB
    FM 4 channel input 200mV / 50Ω / 75dB
    Recording Output
    Tape Rec. 200mV
    Frequency Response 10Hz - 30kHz ±1dB

    Versions/Power Requirements
    E - Europe 220V AC 50Hz
    F - Europe 220/240V AC 50Hz
    M - Canada 120V AC 50/60Hz
    A - UK & Australia 240V AC 50Hz
    P or U -  Other countries 100/120/220/240V AC 50/60Hz selectable

    Similar to the earlier JVC 4VR-5446 Fm-Am 4 Channel Receiver.



  • Peso netto
  • 27.8 kg / 61 lb 3.7 oz (61.233 lb)
  • Letteratura / Schemi (1)
  • - - Manufacturers Literature (Service manual 4VR-5446X 4 Channel Receiver)
  • Autore
  • Modello inviato da Howard Craven. Utilizzare "Proponi modifica" per inviare ulteriori dati.
