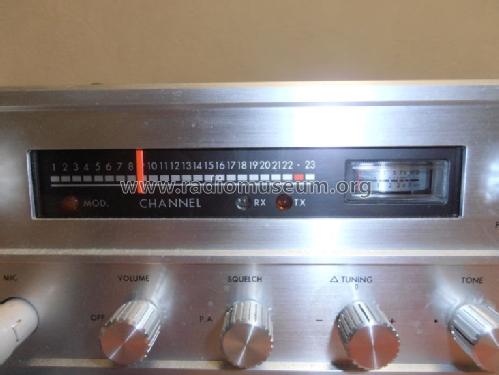

Pony 23 Channel Sythesizer Transceiver CB-75
Kanda Tsushin Kogyo Co., LTD.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Kanda Tsushin Kogyo Co., LTD.; Tokyo
- Year
- 1972 ??
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 251361
- Number of Transistors
- 18
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 220 / 13,8 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3.5 W (5 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Pony 23 Channel Sythesizer Transceiver CB-75 - Kanda Tsushin Kogyo Co., LTD.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 326 x 215 x 106 mm / 12.8 x 8.5 x 4.2 inch
- Notes
-
Transmitter:RF power supply to final stage: 5 W. S/RF measurement. Squelch, tone control, Delta Tune. noise limiter. PA function.
Receiver: Double conversion superhterodyne. Sensitivity:1 µV / 10 dB S/N.18 Transistors, 13 Diodes and 2 ICs.
First price in Italy by GBC (distributor ID; ZR/5600/00): 138,000 ITL
See also the same model CB-75 distributed under the Sommerkamp brand.
- Net weight (2.2 lb = 1 kg)
- 2.8 kg / 6 lb 2.7 oz (6.167 lb)
- Mentioned in
- -- Original prospect or advert (CQ Elettronica, CD editor, number 11/131, November 1977)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
