- Country
- Austria
- Manufacturer / Brand
- Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 9446
Original Kapsch-Werbeblatt
Original Kapsch-Werbeblatt

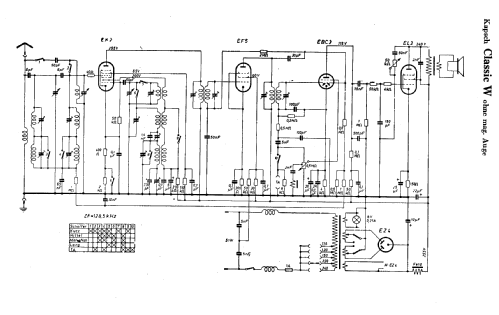

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 115-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Classic W - Kapsch & Söhne KS, Telephon-
- Dimensions (WHD)
- 498 x 379 x 254 mm / 19.6 x 14.9 x 10 inch
- Notes
- ZF=128,5
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange-Nowisch
- Mentioned in
- Museums Bote, Österr. (Heft 111/2002, S.6, Kurzbeschreibung)
