• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1968

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 84843

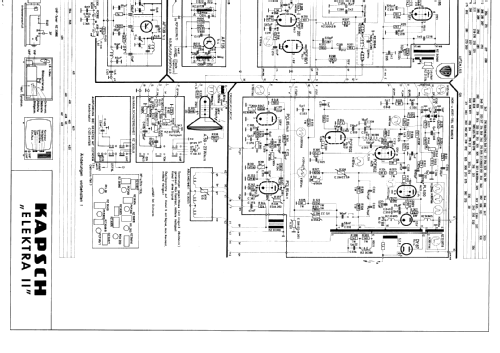

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• PC900 PCF801 PCF201 PCF200 PFL200 PCH200 PCF80 PCF80 PCL86 PCF802 PCL85 PY88 PL500 DY87 A59-23W

• Number of Transistors
• 4

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Elektra II - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel with Push Buttons.

• Notes
• Fernsehbänder: VHF Band I+III, UHF Band IV/V. 59-cm-Bildröhre.

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.

• Other Models

• Here you find 614 models, 508 with images and 378 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
