- Country
- Austria
- Manufacturer / Brand
- Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 130879

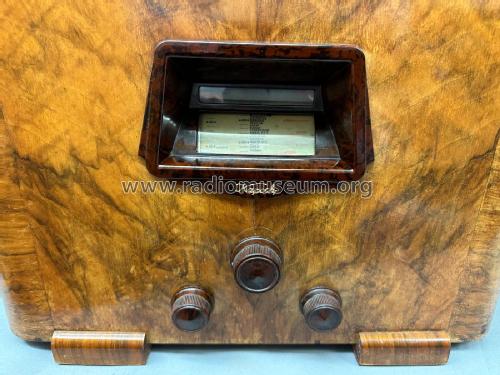

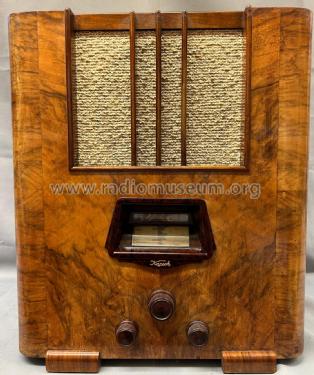

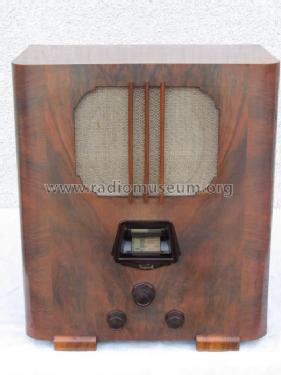

Kapsch Excellent KML

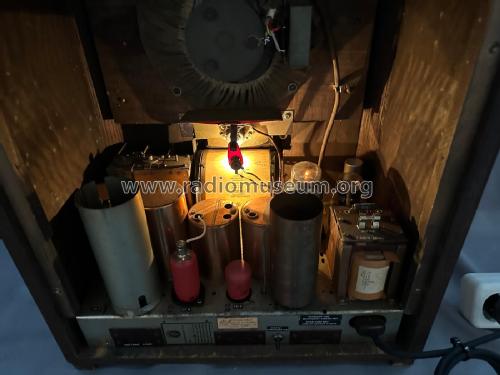

Kapsch Excellent KML (Innenansicht)

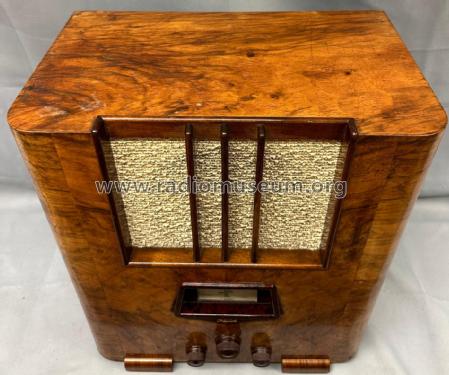

Kapsch Excellent KML

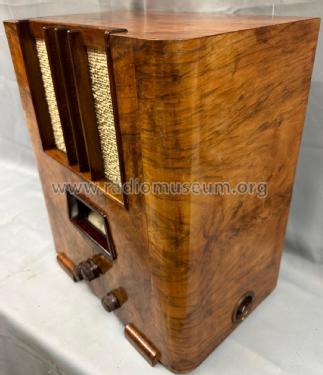

Kapsch Excellent KML
Kapsch Excellent KML (Innenansicht)

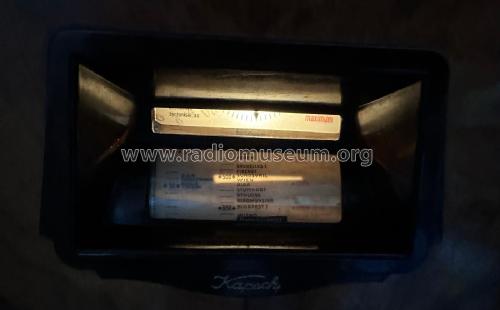

Kapsch Excellent KML (Skala)
Kapsch Excellent KML (Skala)

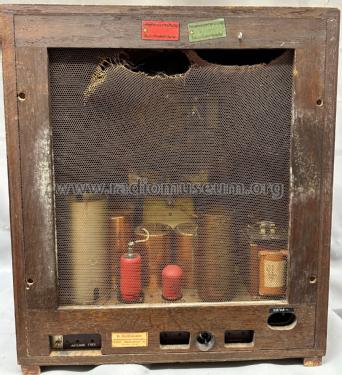

Kapsch Excellent KML (Rückansicht)
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Excellent KML - Kapsch & Söhne KS, Telephon-
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 350 x 440 x 230 mm / 13.8 x 17.3 x 9.1 inch
- Notes
- Glimmstab-Anzeige.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
