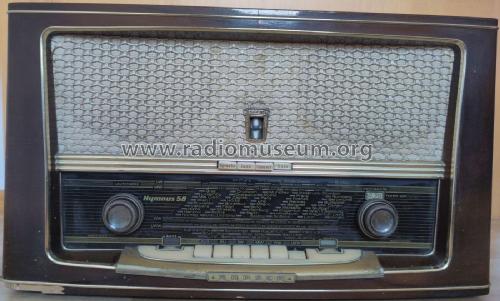

Hymnus 58 Wechselstrom

• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81434

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 EF89 ECH81 EF89 EM81 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 480/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Hymnus 58 Wechselstrom - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 322 x 236 mm / 22.8 x 12.7 x 9.3 inch

• Notes

• Besonderheiten:

  • 3D Raumklang
  • 4 Klangregister
  • getrennte Bass-/Höhenregelung
  • Skalenlämpchen 7V 0,3A

• Price in first year of sale
• 2,595.00 ATS

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Museums Bote, Österr. (Heft 122/2004, S.4, Kurzbeschreibung)
