• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9556

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• SFT320 SFT319 SFT319 SFT353 SFT353 SFT323 SFT361

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

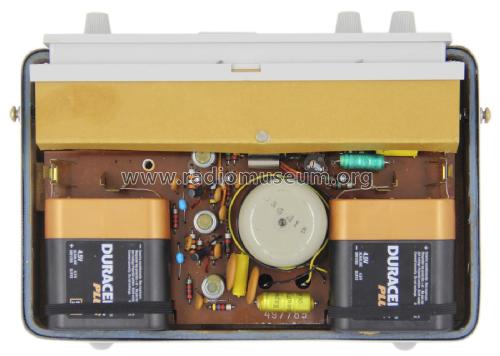

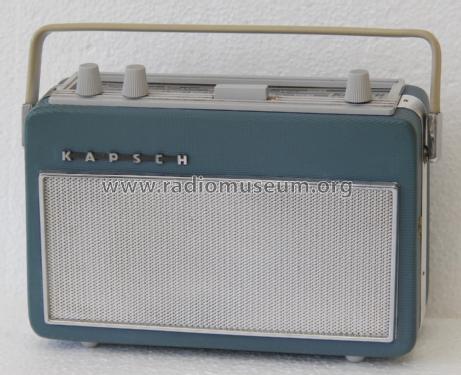

• Model: Lyra MW-LW - Kapsch & Söhne KS, Telephon-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 185 x 70 mm / 9.4 x 7.3 x 2.8 inch

• Notes

• Ähnlich Kapsch Lyra MW jedoch mit zusätzlichem LW-Bereich

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
