- Country
- Austria
- Manufacturer / Brand
- Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 9397

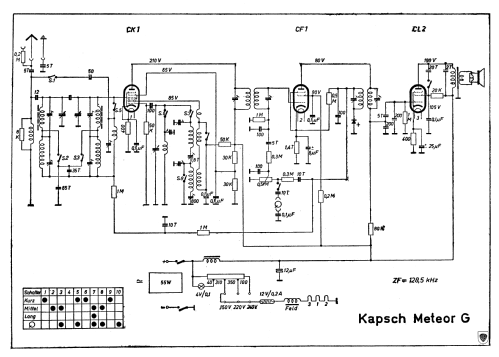

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- Semiconductors
- Diode
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Direct Current supply (DC) / 150-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Meteor G - Kapsch & Söhne KS, Telephon-
- Notes
- Kapsch modell Meteor G hat eine CK1, keine CK2 wie der Lange-Schaltplan zeigt, denn die existiert nicht. Hingegen zeigt der Schaltplan korrekt einen 7-Kreiser - mit Halbleiter-Diode.
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Mentioned in
- Museums Bote, Österr. (Heft 109/2001, S.6, Kurzbeschreibung)
- Other Models
-
Here you find 614 models, 508 with images and 378 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
