Mondial 3D

• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72847

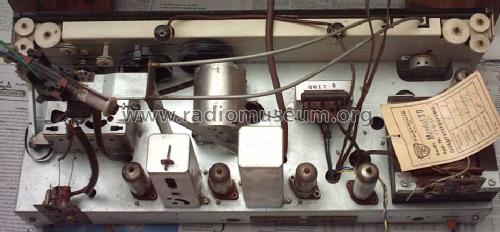

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Mondial 3D - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 320 x 265 mm / 21.7 x 12.6 x 10.4 inch

• Notes
• Druckkammer-Hochtöner mit zwei Exponentional-Trichtern auf den Seiten, UKW-Variometer.

• Net weight (2.2 lb = 1 kg)
• 11.9 kg / 26 lb 3.4 oz (26.211 lb)

• Price in first year of sale
• 2,350.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Museums Bote, Österr. (Heft 123/2004, S.6, Kurzbeschreibung)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Christian Bruckner. See "Data change" for further contributors.
