• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9323

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• E442S E424 B443 506

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Power out
• 1.2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

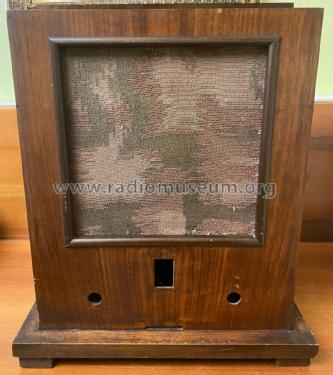

• Model: Pionier-L 10082 - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 430 x 500 x 245 mm / 16.9 x 19.7 x 9.6 inch

• Notes
• Frequenzbereich 200 bis 600 m. Anschluß für Plattenspieler. Preis mit Röhren

• Net weight (2.2 lb = 1 kg)
• 8.1 kg / 17 lb 13.5 oz (17.841 lb)

• Price in first year of sale
• 335.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
