- Country
- Austria
- Manufacturer / Brand
- Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 9558
Kapsch Privileg�
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common); ZF/IF 480/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Privileg - Kapsch & Söhne KS, Telephon-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 408 x 227 x 196 mm / 16.1 x 8.9 x 7.7 inch
- Notes
-
- Betrieb: Batterie 6 V und Auto 6/12 V.
- Änderungen der Schaltung während der Produktion,siehe Schaltpläne.
- 7 geänderte; 5 neue; 1 entfallener Bauteil
- Autohalterung RZ21609 mit Umschalter für 6 oder 12 Volt kostete 470 ATS.
- Net weight (2.2 lb = 1 kg)
- 2.9 kg / 6 lb 6.2 oz (6.388 lb)
- Price in first year of sale
- 2,150.00 ATS
- External source of data
- E. Erb 3-907007-36-0
- Source of data

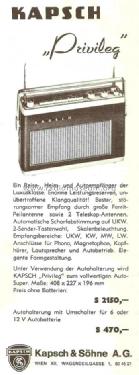

- -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Österreichische Radioschau (ÖRS) (Heft 3, 1965, Seite 140)
- Literature/Schematics (1)

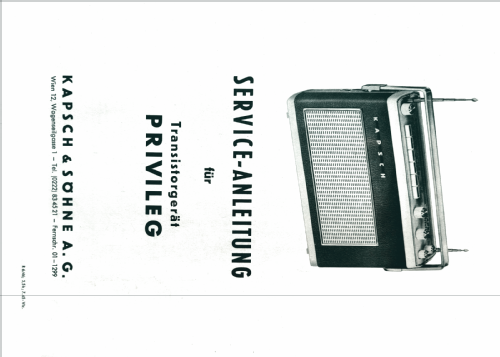

- -- Original-techn. papers.
- Literature/Schematics (2)
- Museums Bote, Österr. (Heft 126/2004, S.5, Kurzbeschreibung)
