- Country
- Austria
- Manufacturer / Brand
- Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 9463

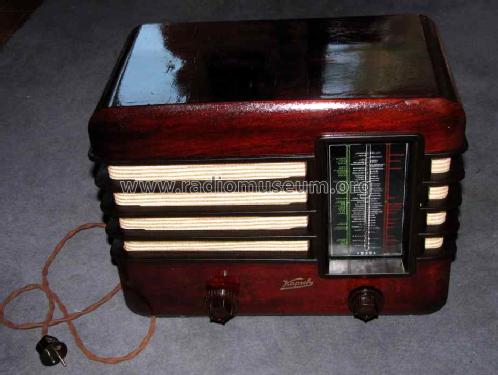

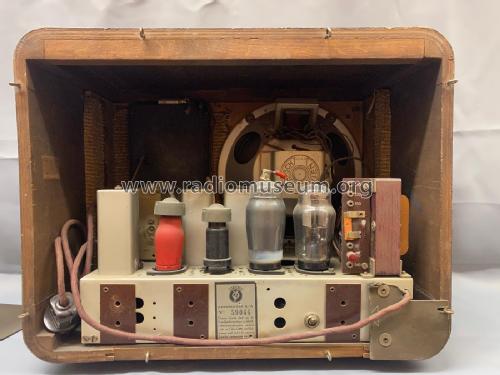

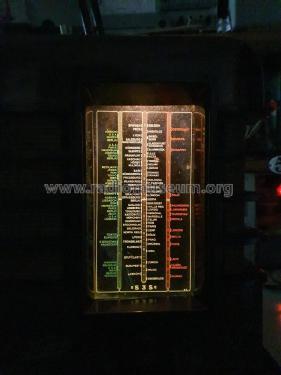

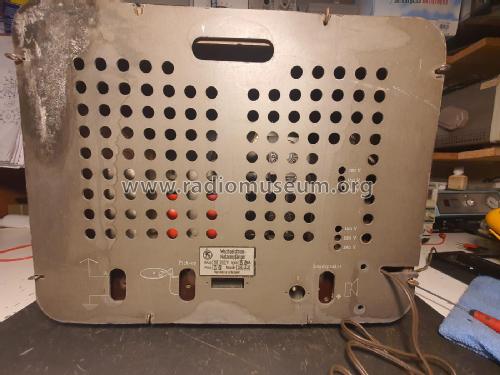

Kapsch Type S3S Holzausführung

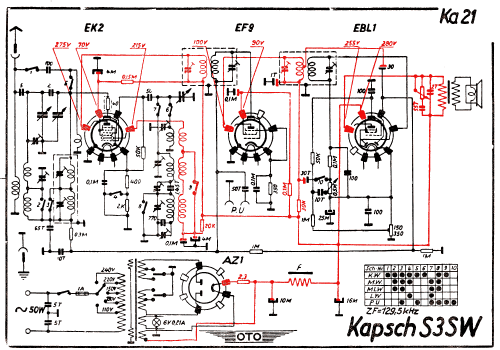

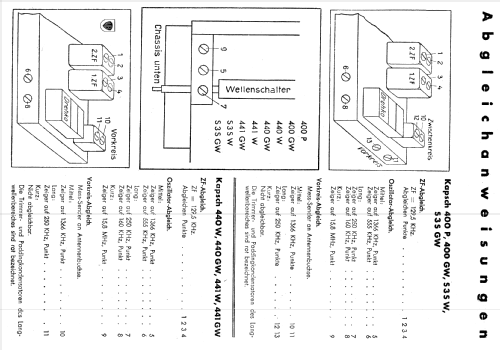

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 129 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110, 130, 150, 180, 220, 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: S3S-W - Kapsch & Söhne KS, Telephon-
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 433 x 337 x 290 mm / 17 x 13.3 x 11.4 inch
- Notes
- ZF=129,5
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 225.00 RM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Handbuch WDRG 1938 / Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Mentioned in
- Museums Bote, Österr. (Heft 112-113/2002, S.6, Kurzbeschreibung)
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
