• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153259

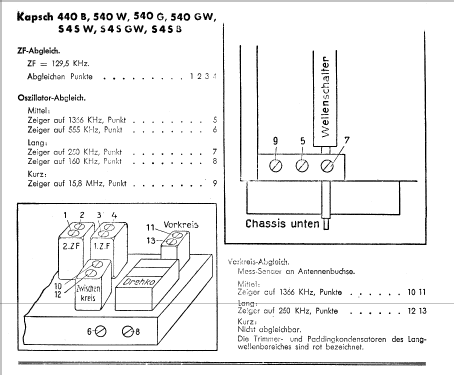

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EK2 EF9 EBC3 CL4 EM1 CY1 EUVI

• Main principle
• Superheterodyne (common); ZF/IF 129,5 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110 - 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

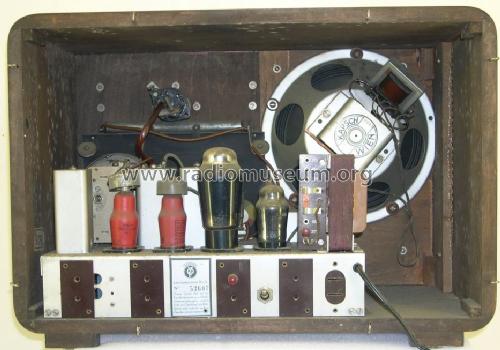

• Model: S4S GW [mit EM1] - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 346 x 267 mm / 19.7 x 13.6 x 10.5 inch

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Literature/Schematics (1)
• Schenk Band 2 1933 - 1942

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
