Sonocord Wechselstrom

• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71541

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

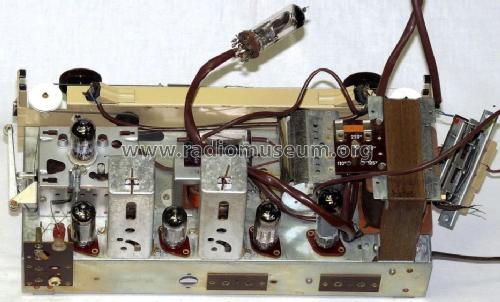

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM81 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 480/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

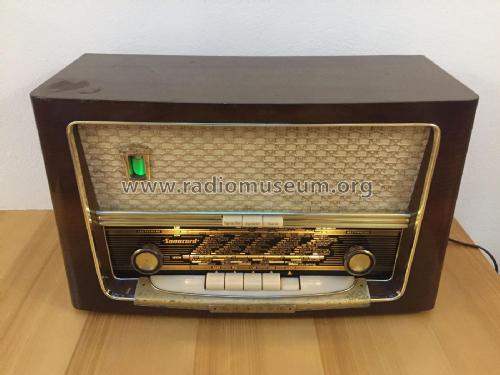

• Model: Sonocord Wechselstrom - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 444 x 260 x 210 mm / 17.5 x 10.2 x 8.3 inch

• Notes

• Besonderheiten:

  • 3 Klangregister
  • Trockengleichrichter
  • Skalenlämpchen 7V 0,3A

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Price in first year of sale
• 1,495.00 ATS

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• RADIOBOTE, Österr. (Heft 70/2017, S.8 ff, Beschreibung und Restaurierung)

• Literature/Schematics (2)
• Museums Bote, Österr. (Heft 122/2004, S.4, Kurzbeschreibung)

• Author
• Model page created by Günter Denoth. See "Data change" for further contributors.
