• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1974–1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80530

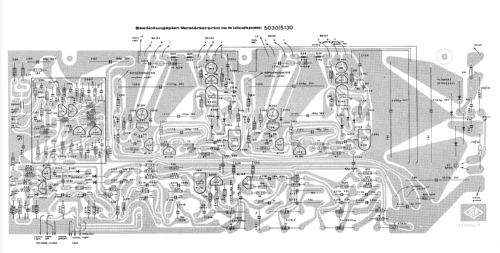

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Details
• Record Player (not changer); Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereostar 5130/L78 - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 450 x 155 x 380 mm / 17.7 x 6.1 x 15 inch

• Notes

• Kapsch Stereo-Kombination Tuner, Verstärker und Laufwerk Modell Stereostar 5130/L78.

  Frequenzbereich: UKW 87...105 MHz. 4 Programmtasten.
  Anzahl der Halbleiter: 30 Transistoren, 1 FET-Transistor, 2 ICs, 2 Zenerdioden, 3 Kapazitätsdioden, 17 Dioden, 1 Brückengleichrichter.
  Sinusleistung 2 x 15 Watt (Klirrfaktor 0,2 %), Musikleistung 2 x 20 Watt.
  NF-Frequenzbereich 20...30.000 Hz (+/- 1,5 dB). Fremdspannungsabstand 54 dB.
  Eingebauter Plattenspieler Lenco L78. Betrieb mit 2 Schallboxen Kapsch TL41 oder TL40.

• Net weight (2.2 lb = 1 kg)
• 12.7 kg / 27 lb 15.6 oz (27.974 lb)

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
