• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9485

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH4 UCH4 UBL1 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

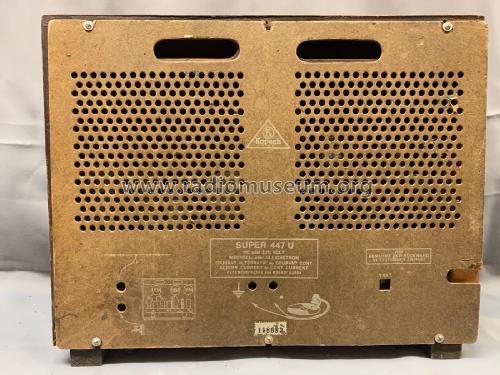

• Model: Gemeinschaftssuper 447U - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 330 x 220 mm / 16.1 x 13 x 8.7 inch

• Notes
• Gemeinschaftsprod. (NF2,NF2,CY1). ÖRA 1946-259ff: Mustergerät 1945 fertig (Entw. Baumgartner, Sliskovic und Rakuschan - siehe Museums-Bote 115). Gefertigt von Czeija, Eumig, Ingelen, Kapsch, S&H, Telefunken, Zerdik. Erhältlich in Hell oder Dunkel

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Price in first year of sale
• 930.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• RADIOBOTE, Österr. (Heft 20/2009, S.11 ff, Gerätebeschreibung)

• Literature/Schematics (1)
• Museums Bote, Österr. (Heft 115/2002, S.5, Gerätebeschreibung)
