• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9520

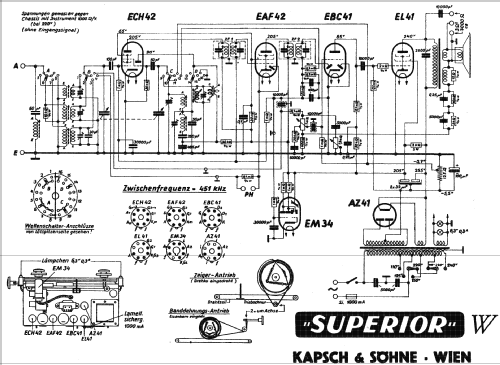

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EBC41 EL41 EM34 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 451 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

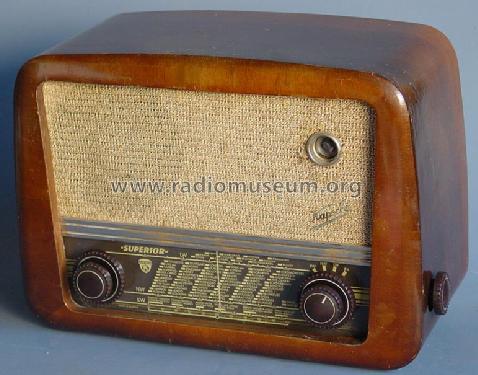

• Model: Superior W Nachkrieg - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 300 x 200 mm / 16.1 x 11.8 x 7.9 inch

• Notes
• Vorbereitet für UKW-Einbaugerät mit EF42 und EF41.

• Price in first year of sale
• 1,575.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Museums Bote, Österr. (Heft 119-120/2003, S.5, Kurzbeschreibung)

• Literature/Schematics (1)
• -- Original-techn. papers.
