• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9411

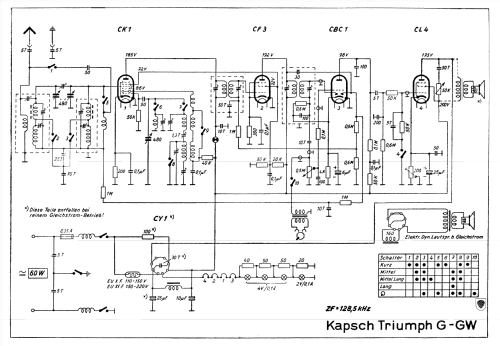

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• CK1 CF3 CBC1 CL4 CY1 EU

• Main principle
• Superheterodyne (common); ZF/IF 128,5 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Triumph U Hoch - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Abstimmanzeige mit Messinstrument.

• Price in first year of sale
• 493.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Museums Bote, Österr. (Heft 110/2002, S.7, Kurzbeschreibung)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 614 models, 508 with images and 378 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
