• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1982/1983

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 176456

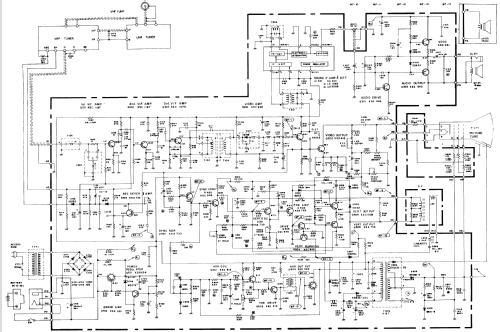

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• ZF/IF 38,9/33,4MHz kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Batteries (any type) / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Viennastar VS-600 - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 400 x 320 x 280 mm / 15.7 x 12.6 x 11 inch

• Price in first year of sale
• 1,890.00 ATS

• Source of data
• -- Original-techn. papers.

• Mentioned in
• - - Manufacturers Literature (Funkberater Katalog 1982)

• Author
• Model page created by Franz Ölzant. See "Data change" for further contributors.
