Dämpfungswähler ERD 21 BN 272868
Kathrein; Rosenheim
- Country
- Germany
- Manufacturer / Brand
- Kathrein; Rosenheim
- Year
- 1994 ??
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 260465
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Dämpfungswähler ERD 21 BN 272868 - Kathrein; Rosenheim
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 51 x 38 x 18 mm / 2 x 1.5 x 0.7 inch
- Notes
-
Dämfpungsregler, 0,15-2050 MHz,
Regelbereich 0,5-20 dB,
Durchgangsdämpfung 0,5-2 dB.
Anschluß IEC 2,4/9,5.
- Net weight (2.2 lb = 1 kg)
- 0.050 kg / 0 lb 1.8 oz (0.11 lb)
- Mentioned in

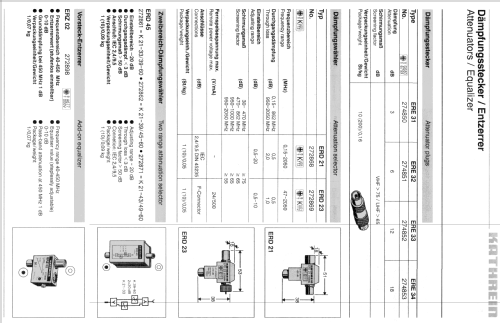

- -- Original prospect or advert
- Author
- Model page created by a member from D. See "Data change" for further contributors.
