- Country
- France
- Manufacturer / Brand
- Kéra-Brodin, Marcel Brodin; Clichy
- Year
- 1925/1926
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 296135

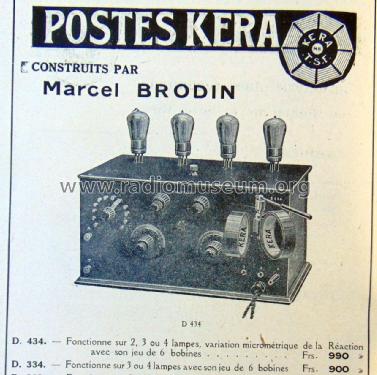

Pub L'Annuaire des Cat. 1925-1926
L'Annuaire des Cat. 1925-1926
- Number of Tubes
- 4
- Valves / Tubes
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: D434 - Kéra-Brodin, Marcel Brodin;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 450 x 215 x 260 mm / 17.7 x 8.5 x 10.2 inch
- Notes
-
Poste à 4 lampes, fonctionne sur 2, 3 ou 4 lampes. Avec jeu de 6 bobines. Montage à résonance spéciale. Réception de 100 à 3500 m.
- Net weight (2.2 lb = 1 kg)
- 8.7 kg / 19 lb 2.6 oz (19.163 lb)
- Price in first year of sale
- 990.00 FRF
- Mentioned in
- L'Annuaire des Cat. de la TSF 1925-1926
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
