Schulfunkradio KH-2 Ch= Philips Sirius 53 BD322U

Kirsch KG, Hans; Duisburg-Meiderich

Data
Forum
Pictures
Collections

  • Year
  • 1953 ??
  • Category
  • Teaching aids-material
  • Radiomuseum.org ID
  • 308688

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; ZF/IF 465/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / 127; 220 Volt
  • Loudspeaker

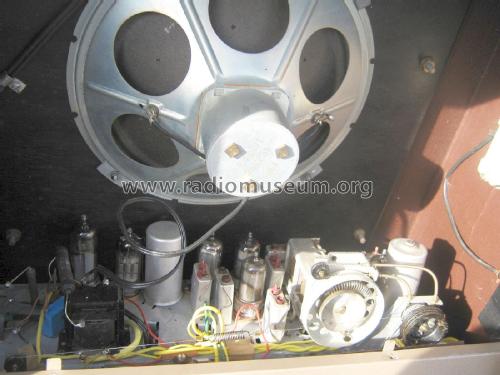

  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Schulfunkradio KH-2 Ch= Philips Sirius 53 BD322U - Kirsch KG, Hans; Duisburg-
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 440 x 480 x 260 mm / 17.3 x 18.9 x 10.2 inch
  • Notes

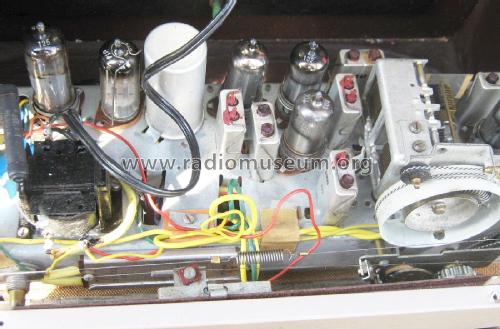

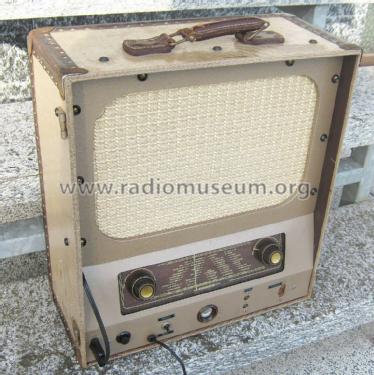

  • Schul-Rundfunkempfänger im Koffer; Holz mit Lederstoff überzogen, eingebaute Antennen, Anschluss für Aussenantenne und Tonabnehmer, Chassis entspricht Philips Sirius 53 BD322U.

  • Net weight (2.2 lb = 1 kg)
  • 10.5 kg / 23 lb 2 oz (23.128 lb)
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
