- Country
- Germany
- Manufacturer / Brand
- Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)
- Year
- 1969 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 100249
Q: K+H Telewatt Produkt-Information

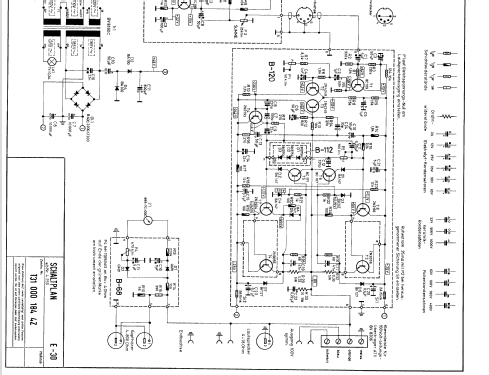

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 16
- Semiconductors
- BC109 BC109 BC109 BC109 BC109 BC109 BC109 2N4249 2N4249 2N2193 BC107 BC177 2N2193 2N2904 2N3055 2N3055 1N3754 1N3754 1N3754 BA147 BA147 BA147 BA147 BA147 BY127 BY127 OA81 OA81 B40C3200
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 30 W (40 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Telewatt E30 - Klein & Hummel; Stuttgart-
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 445 x 160 x 270 mm / 17.5 x 6.3 x 10.6 inch
- Notes
-
Mono-Mischverstärker, 5 Eingänge, 100-Volt-Ausgang.
Bisher sind 2 Varianten mit leichten Schaltungsänderungen bekannt:
Ab Nr. 4250 mit 16 Transistoren.
Ab Nr. 5265 mit 17 Transistoren.
- Net weight (2.2 lb = 1 kg)
- 11.6 kg / 25 lb 8.8 oz (25.551 lb)
- Literature/Schematics (1)
- -- Original-techn. papers. (Telewatt E30, ab Geräte-Nr. 4250)
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
