Echolette S NG51

• Country
• Germany

• Manufacturer / Brand
• Echolette (Marke / brand); München

• Year
• 1960–1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 114897

• • Brand: Klemt-Echolette

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC83 ECC83 ECC83 ECC83 EM84 ECC82

• Number of Transistors

• Semiconductors
• SFD108 or. OA150 B300C70

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240; 250 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Echolette S NG51 - Echolette Marke / brand;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 320 x 140 x 250 mm / 12.6 x 5.5 x 9.8 inch

• Notes

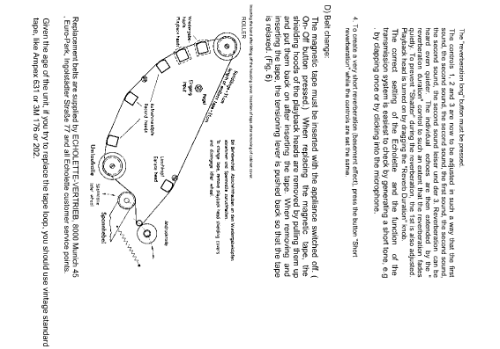

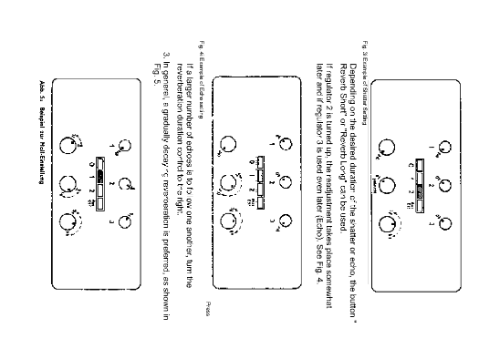

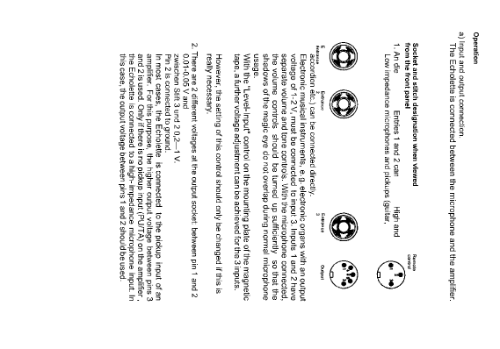

• Echo-Nachhallerzeugung über Endlosbandschleife. 3-Aufnahmeköpfe, 2-Wiedergabeköpfe, 1-Löschkopf. Echoanzahl max.10, Nachhalldauer max.3 sec.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
