• Country
• Great Britain (UK)

• Manufacturer / Brand
• Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151504

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

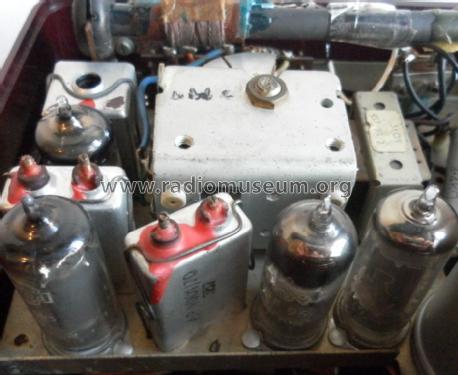

• DK96 DF96 DAF96 DL96

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Line / Batteries (any type) / 205; 225; 245 / 7,5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Rhapsody MP151/2 - Kolster Brandes Ltd. KB, K.B.,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 245 x 160 x 85 mm / 9.6 x 6.3 x 3.3 inch

• Notes

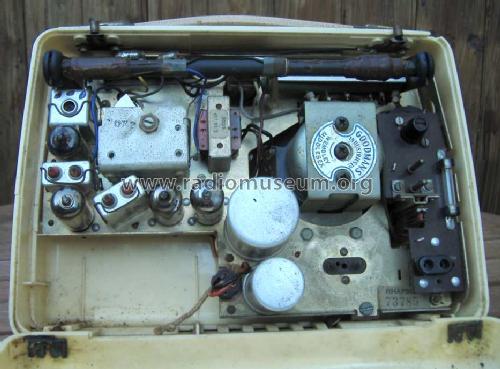

• This set is similar in appearance to the earlier model Rhapsody MP151, but has larger speaker, different batteries & improved circuit, the MP151 circuit in R&TVS is quite inaccurate for the Power supply . The chassis looks imore like  the Rhapsody Delux PP251 and the PSU circuit is similar (though a different chassis layout). The ERT sheet 1180 should be used. There is no matching Trader Sheet.

  The MP151/3 is referred to as like this model and the Rhapsody Delux PP251

  The Valve (tube) portable Rhapsody models span 1955 to 1960 approx. and despite being 3 models with very slight case variations and one model with a different style case all only have "Rhapsody" as the Model name on the chassis serial number label.

  KB service note
  The model MP151/2  can be identified as follows; Serial Nos. over 60000. Heater current controlled by potentiometer fitted with knob. Mains plug small flat type fitted to right side cabinet back.

• Net weight (2.2 lb = 1 kg)
• 1.750 kg / 3 lb 13.7 oz (3.855 lb)

• Price in first year of sale
• 17.00 GBP

• Source of data
• -- Schematic

• Literature/Schematics (1)
• ERT Sheet 1180.

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
