• Country
• Austria

• Manufacturer / Brand
• Körting Austria

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 320615

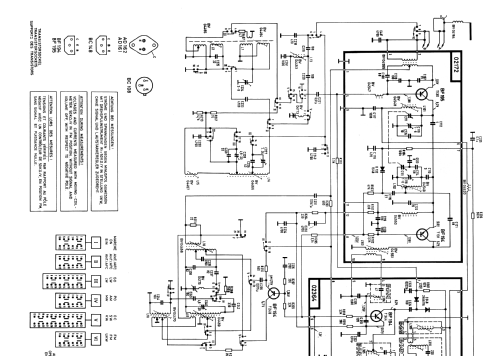

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF195 BF194 BF194 BF194 BF194 BF194 BC148 BC108 AD161 AD162 1S49 AA116 AA116 AA116 BZ102 BZY87

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / C: 5 × 1,5 / 7,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

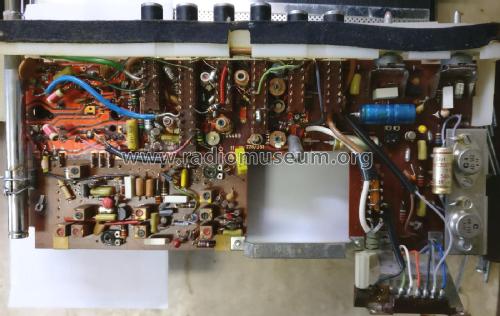

• Model: Funkberater Exklusiv Transistorkoffer 30182 - Körting Austria

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 165 x 74 mm / 11.4 x 6.5 x 2.9 inch

• Notes

• Siehe auch ähnliches Modell Neckermann Körting Auto-Transistorkoffer Taunus 29183

• Literature/Schematics (1)
• -- Original-techn. papers. (Körting Service zu Transistorkoffer 30182)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
