• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1967 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 333003

• • alternative name: Dietz & Ritter GmbH, Dr.

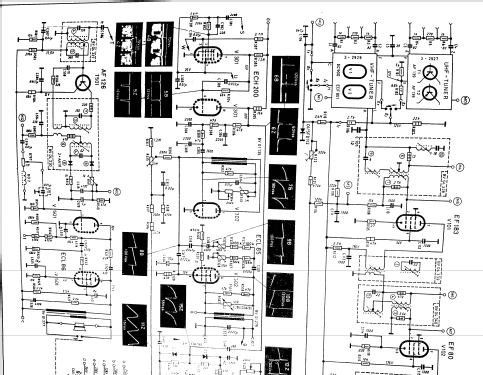

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• EC900 ECF801 EF183 EF80 EF80 ECL84 ECH200 ECL85 ECL86 EC92 PL500 PY88 DY86 A65-11W

• Number of Transistors
• 3

• Semiconductors
• AF139 AF139 AF126 OA160 AA111 AA111 OA161 OA161 OA161

• Main principle
• Superhet with RF-stage; Export model

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 160; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Weser 46839 - Körting-Radio; Leipzig, später

• Shape
• Tablemodel, low profile (big size).

• Notes

• Körting Weser 46839 ist ein 65 cm s/w Fernsehempfänger.

  Netzspannungen können mit ± 5 V Anzapfungen am Netztrafo fein eingestellt werden. UHF-Tuner transistorisiert.

• Mentioned in
• -- Schematic (Esquemario TV XIV REDE)

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.

• Other Models

• Here you find 815 models, 667 with images and 471 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
