Master Multi Sonic Stereo 11-103
Kriesler Radio Company; Newtown (Sydney)
- País
- Australia
- Fabricante / Marca
- Kriesler Radio Company; Newtown (Sydney)
- Año
- 1966–1970
- Categoría
- Radio - o Sintonizador pasado WW2
- Radiomuseum.org ID
- 160487
Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.
- Numero de valvulas
- 8
- Principio principal
- Superheterodino en general; ZF/IF 455 kHz; 3 Etapas de AF
- Número de circuitos sintonía
- 6 Circuíto(s) AM
- Gama de ondas
- OM (onda media) solamente
- Especialidades
- Tocadiscos con cambiador autom.
- Tensión de funcionamiento
- Red: Corriente alterna (CA, Inglés = AC) / 200-250 Volt
- Altavoz
- 7 Altavoces o más
- Material
- Madera
- de Radiomuseum.org
- Modelo: Master Multi Sonic Stereo 11-103 - Kriesler Radio Company;
- Forma
- Consola baja, patas más cortas del 50%.
- Ancho, altura, profundidad
- 46.625 x 30.625 x 17.375 inch / 1184 x 778 x 441 mm
- Anotaciones
-

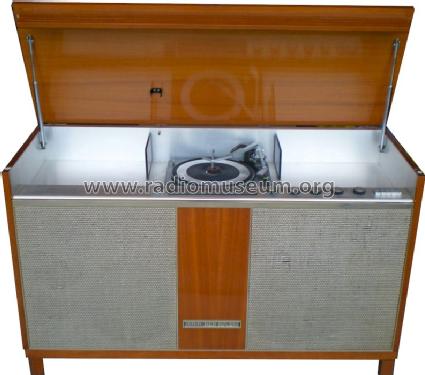

Kriesler Model 11-103 Hi-Fi Master Multi-Sonic Stereogram
An 8-valve AC broadcast band stereophonic radiogram, fitted into a new cabinet design. Finished in maple, walnut or rose mahogany. Teak tonings to order, no extra cost.
The record playing apparatus features an exclusive Kriesler (Garrard) AT60 changer "Laboratory Series", counter balance on tone arm which embodies bias compensator unit and rest clip clamp. The pick-up head is a Sonotone 9TA, an improved mechanism-robust, higher compliance HI-FI cartridge fitted in a retractable drop-proof head assembly; dual. tipped diamond stylus. Plays all speeds, all sizes, automatically or manually, stereo or monaural. Push-pull power amplifiers provide 20 watts peak music power per channel. Separate bass and treble tone controls for flexibility in adjusting tonal range. Fitted with stereo balance tuning meter for checking balance on stereo and for accuracy in radio tuning. In-built ferrite rod aerial with provision for connecting an external aerial.
Speakers: eight. comprising two 12" round 15 ohm (Magnavox 12PI); four 6" elliptical 15 ohm (Magnavox 64S1C); two special electrostatics (Magnavox E3.5); frequency response better than 30-15,000 c/s (Hz).
"Multi-sound" sockets for microphone, tape recording and tape playback through unit's amplifiers or speakers; for connecting extension speakers; for amplifying musical instruments; for paging by microphone. Supplied complete with Kriesler dynamic microphone. Storage space for medium sized tape recorder and for record stowage. (FROM MINGAY'S PRICE SERVICE)
- Precio durante el primer año
- 389.00 AUS $
- Mencionado en
- Mingay's Price Service (Aug 1966 to Feb 1970.)
- Documentación / Esquemas (1)
- -- Original-techn. papers. (Kriesler Radio Data Sheet No. 102.)
- Documentación / Esquemas (2)
- J.R. Publications Radio Service Handbook (Group 1, September 1966, Page K39.)
