• Country
• Austria

• Manufacturer / Brand
• Kristallwerk Graz (auch Rainer)

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30865

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

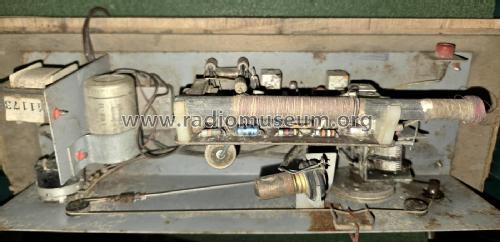

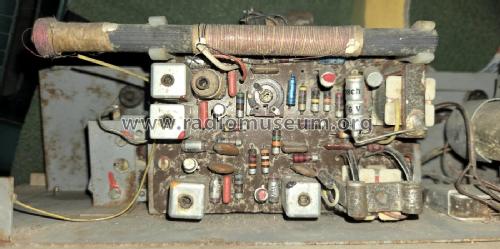

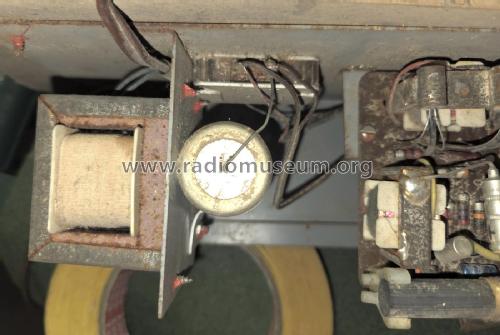

• Model: Kristallette TT65.76 - Kristallwerk Graz auch Rainer

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 340 x 216 x 140 mm / 13.4 x 8.5 x 5.5 inch

• Notes
• Transistoren: 3xAF127 2xAC125 2xAC128

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• RADIOBOTE, Österr. (Heft 68/2017, S.3 ff, Gerätebeschreibung)
