- Country
- Sweden
- Manufacturer / Brand
- Kungs (Brand); Göteborg
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 123694
-
- alternative name: Kungsradio
SW; Kungs (Brand); Göteborg; Model HW4

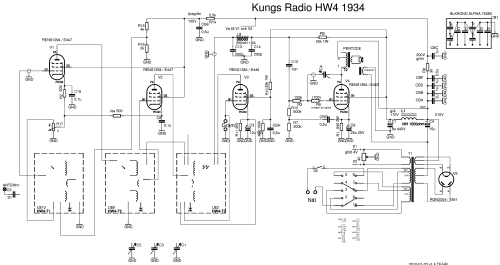

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; Anode bend detection
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 135; 150; 220; 235; 245; 260 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org

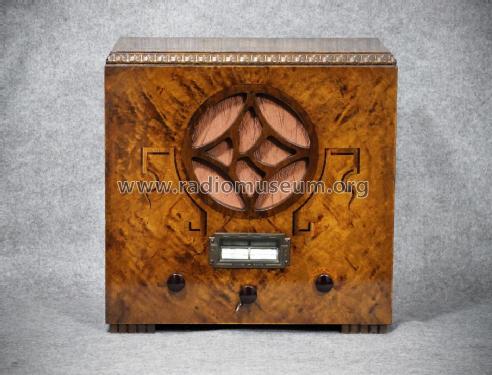

- Model: HW4 - Kungs Brand; Göteborg
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 420 x 420 x 240 mm / 16.5 x 16.5 x 9.4 inch
- Notes
-
Avaliable for voltages 110-260V. Voltage must be specified with order to get correct "switchplug". Price 10 SEK extra for 25Hz net.
Genuine inlay work in flamed birch veneer.
- Net weight (2.2 lb = 1 kg)
- 19 kg / 41 lb 13.6 oz (41.85 lb)
- Price in first year of sale
- 375.00 SEK
- Source of data
- - - Manufacturers Literature
