B-12 32 Volt Receiver
Lafayette Radio & TV Corp; New York (NY)
- Paese
- Estados Unidos
- Produttore / Marca
- Lafayette Radio & TV Corp; New York (NY)
- Anno
- 1935/1936
- Categoria
- Radio - o Sintonizador pasado WW2
- Radiomuseum.org ID
- 160282
-
- alternative name: Wholesale Radio
Lafayette catalog no. 59 for 1936, page 32.
Lafayette catalog no. 59 for 1936, page 32.
Clicca sulla miniatura dello schema per richiederlo come documento gratuito.
- Numero di tubi
- 6
- Principio generale
- Superheterodino con paso previo de RF; ZF/IF 175 kHz; 3 Etapas de AF
- N. di circuiti accordati
- 7 Circuíto(s) AM
- Gamme d'onda
- OM (onda media) solamente
- Tensioni di funzionamento
- Red: Corriente continua (CC, inglés = DC) / 32 Volt
- Altavoz
- Altavoz electrodinámico (bobina de campo) / Ø 6 inch = 15.2 cm
- Material
- Madera
- Radiomuseum.org
- Modello: B-12 32 Volt Receiver - Lafayette Radio & TV Corp; New
- Forma
- Sobremesa alto decorativa, similar a Capilla pero cuadrado (Tombstone, can have rounded edges).
- Dimensioni (LxAxP)
- 16.25 x 19 x 10.5 inch / 413 x 483 x 267 mm
- Annotazioni

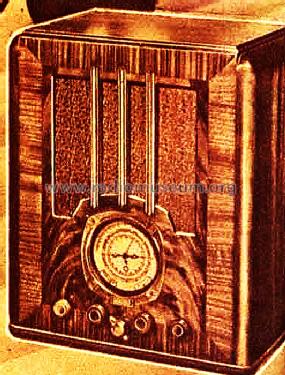

- The Lafayette catalog for model B-12 reads: "especially designed for use with 32 volt Delco systems or similar power plants." This 6 tube 32 volt receiver covers the wavelengths from 171 to 565 meters for broadcast stations, weather reports and police calls. It is a superheterodyne with AVC, tone control, electro-dynamic speaker, 3 gang condenser and an illuminated airplane dial.
The B-12 mantel receiver has a list price of $ 54.00 and Lafayette asks for $ 26.95. See details for the models of this catalog or summaries. At least the chassis is made by Wells-Gardner as model 6D. The model is stamped into the chassis. Wells-Gardner was a contract manufacturer, sometimes for different clients, as here for Gamble Skogmo, Inc. which called the model also as 6D. The schematic is found at Rider's Vol. 10, page Gamble 10-1 and 10-2. The tube 43 is the driver and the double triode 6A6 is the push-pull power output tube.
- Prezzo nel primo anno
- 27.00 $
- Riferimenti schemi
- Rider's Perpetual, Volume 10 = 1939 and before
- Documentación / Esquemas (1)
- Lafayette Radio Catalog (Lafayette catalog no. 59 for 1936, page 32.)
- Autore
- Modello inviato da Ernst Erb. Utilizzare "Proponi modifica" per inviare ulteriori dati.
